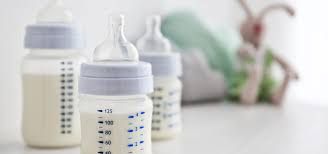

Warpage, the undesired distortion of parts after ejection from the mold, is a persistent challenge in thin-wall Liquid Silicone Rubber (LSR) molding, particularly for baby bottles. These containers demand perfect roundness and flat sealing surfaces to ensure leak-proof assembly with nipples and caps. Uneven cooling rates across the thin walls create residual stresses that relax post-ejection, causing dimensional instability. This warpage can lead to fitting problems, aesthetic blemishes, or even rejection by quality control, impacting yield and profitability in high-volume production scenarios.
Mold design plays a pivotal role in mitigating warpage in thin-wall LSR parts. Uniform wall thickness is ideal but not always feasible due to functional requirements. Therefore, strategic placement of cooling channels becomes critical. Conformal cooling lines, following the cavity contour closely, promote even heat extraction. Balanced temperature control across all mold zones prevents localized hot spots that cause differential shrinkage. Ejector pin placement must also be optimized to apply uniform force during part removal, avoiding cantilever stresses that initiate warping tendencies after release from the mold.
Processing parameters significantly influence warpage development in thin-wall LSR molding. Rapid heating and cooling cycles, necessary for productivity, can induce thermal gradients if not managed carefully. Slower, more controlled cooling phases allow internal stresses to relax gradually within the mold, reducing post-ejection distortion. Adjusting cure time and mold temperature balances crosslinking kinetics with stress relaxation. Holding pressure duration and magnitude help compensate for volumetric shrinkage, minimizing internal stress buildup that manifests as warpage once constraints are removed upon ejection.
Material selection and handling also contribute to warpage control strategies. Low-shrinkage LSR formulations specifically engineered for thin-wall applications can reduce inherent distortion tendencies. Consistent material temperature and viscosity ensure predictable flow and cure behavior. Premature gelation or inconsistent batch properties introduce variability that complicates process control. Rigorous incoming material inspection and storage protocols maintain LSR quality. Post-molding conditioning, such as controlled cooling on fixtures or annealing treatments, can further stabilize dimensions and rectify minor warpage issues before final packaging.
