Electronic components continue to shrink, demanding ever-greater precision in mold design. Overmolding tiny metal inserts like SIM card trays requires micron-level accuracy. This article explores the technologies enabling such extreme precision.

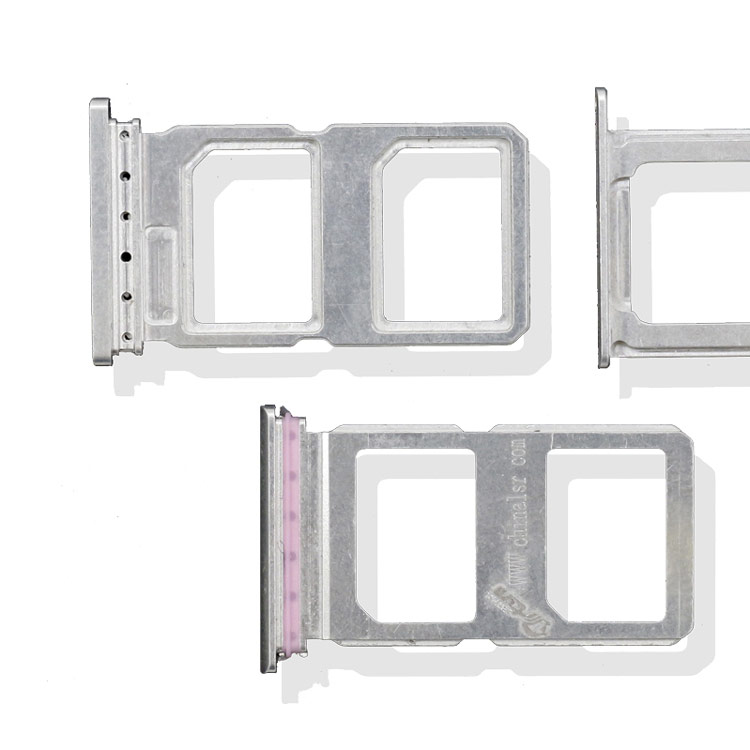

The humble SIM card tray in a smartphone is a prime example of micro-insert molding. The tiny, stamped metal tray (often <10mm in length) must be precisely positioned within the mold cavity before the LSR is injected to form the surrounding housing. Any misalignment, even on the order of microns, renders the part unusable, as the tray will not properly interface with the phone's internal connector.
Achieving the required <0.01mm positional accuracy demands cutting-edge mold design and manufacturing. TYM utilizes high-precision machining centers with linear scales and advanced controllers to create the mold base and insert pockets. The pockets themselves are often machined using Electrical Discharge Machining (EDM) to achieve the necessary tight tolerances and surface finishes without inducing stress.
The insert loading mechanism is equally sophisticated. We integrate robotic pick-and-place units with vision-guided positioning systems. These systems use high-resolution cameras to locate fiducial marks on the metal tray and adjust its position to within the required tolerance before placing it in the precisely machined mold cavity. The mold clamping system is designed with minimal play to maintain this position throughout the high-pressure injection cycle. This marriage of ultra-precise tooling and intelligent automation makes the reliable production of these critical micro-components possible.
