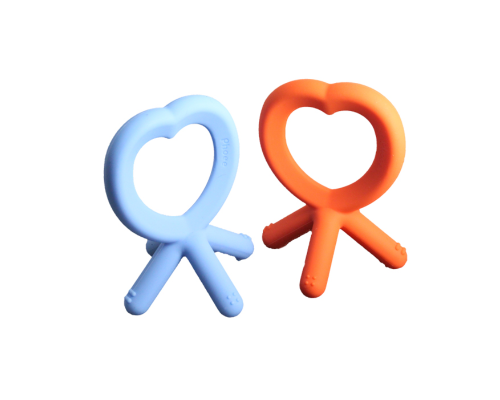

To meet market demand, producing baby teethers or valve discs at high volume often requires multi-cavity molds. Designing these molds for perfect balance and efficiency is key. This article discusses the strategies for successful high-cavity tooling.

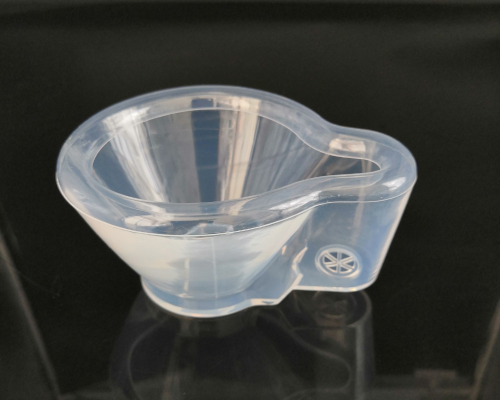

Producing simple parts like baby teethers or respirator valve discs in large quantities efficiently demands multi-cavity molds. A 4-cavity or 8-cavity mold can dramatically increase hourly output compared to single-cavity alternatives. However, the complexity of ensuring that all cavities fill and cure identically increases exponentially.
The cornerstone of a successful high-cavity mold is a perfectly balanced runner system. TYM engineers use advanced Mold Flow Analysis (MFA) software to simulate the flow of LSR through the mold. This analysis guides the design of the main runner, sub-runners, and individual gates to ensure that melt reaches all cavities at exactly the same time, with the same pressure and temperature. Any imbalance can lead to size variations or quality issues in parts from different cavities.
Ejection must also be perfectly synchronized. Each cavity has its own set of ejector pins, and the force and timing applied to each must be identical. This often requires a centralized, programmable ejector system. Material selection for the mold is also crucial; high-cavity molds see significantly more cycles, demanding steels with superior wear resistance and surface finishes that can withstand constant use. By addressing these balancing and durability challenges, high-cavity molds become powerful tools for cost-effective, high-volume production.
