Respirator valve discs are tiny components with precise functional requirements. Their molds must incorporate intricate features to ensure perfect operation. This article details the high-precision engineering needed for these critical molds.

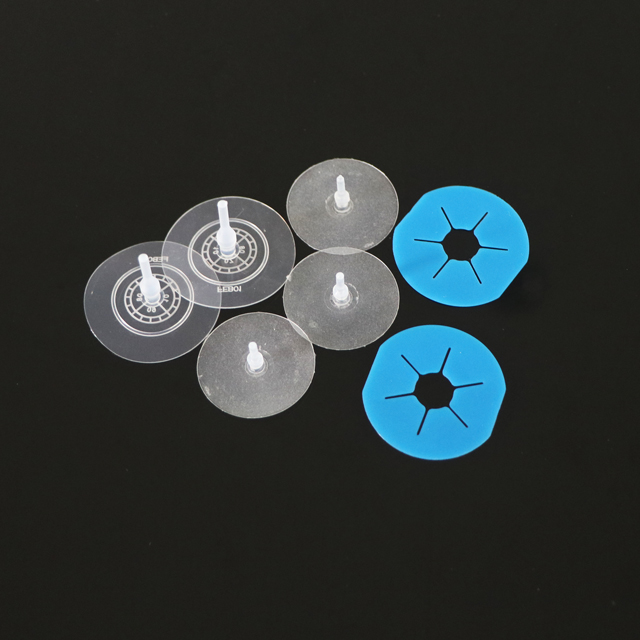

A respirator valve disc is a minuscule yet vital component. Its ability to open and close reliably depends on extremely tight tolerances and smooth surfaces. The mold used to create it must therefore be an exercise in micro-precision engineering.
The core challenge lies in the disc's interaction with its housing. The disc must fit snugly but move freely. This requires the mold cavity to produce a disc with highly accurate outer diameter and flatness. TYM achieves this using high-precision CNC machining and potentially Electrical Discharge Machining (EDM) for the finest details, ensuring tolerances of +/- 0.01mm or better are consistently met.
If the valve design includes features like micro-holes or slots for airflow control, the mold must incorporate correspondingly precise pins or electrodes. These features are often the most challenging aspects to machine and maintain. The mold steel is selected for its wear resistance and ability to hold a fine polish, ensuring these critical features do not degrade over thousands of cycles.
Finally, any moving elements within the mold itself, such as slides used to form undercuts, must operate with exceptional smoothness and accuracy. This often involves custom-ground components and specialized lubrication systems. The cumulative effect of these precision elements is a mold capable of producing valve discs that perform flawlessly, cycle after cycle, in life-critical applications.
